Vega C21— Radar
Vega C21— Radar
Categories: Wired Sensors
Typical Industries:
Brochure
- Fuels and Lubes
- Liquid Feed
- Water and wastewater
- Oil and Gas
- Agriculture
- Chemical Industry
- Fluid tank levels: Fuels, Lubes, Water, Chemicals
- Mobile Totes
- Small Grease tanks
- Fuel Cubes
Brochure
Product Descriptions:

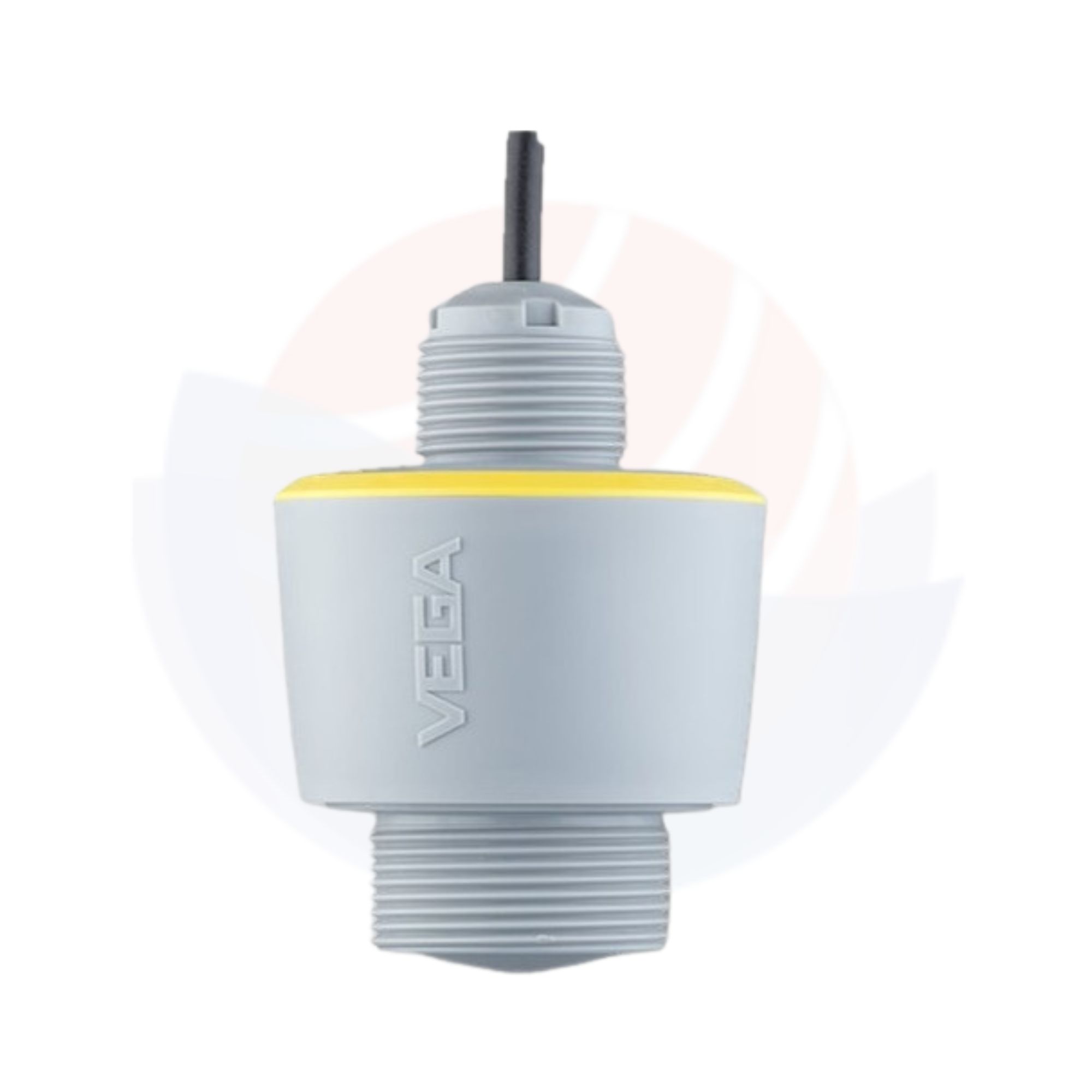

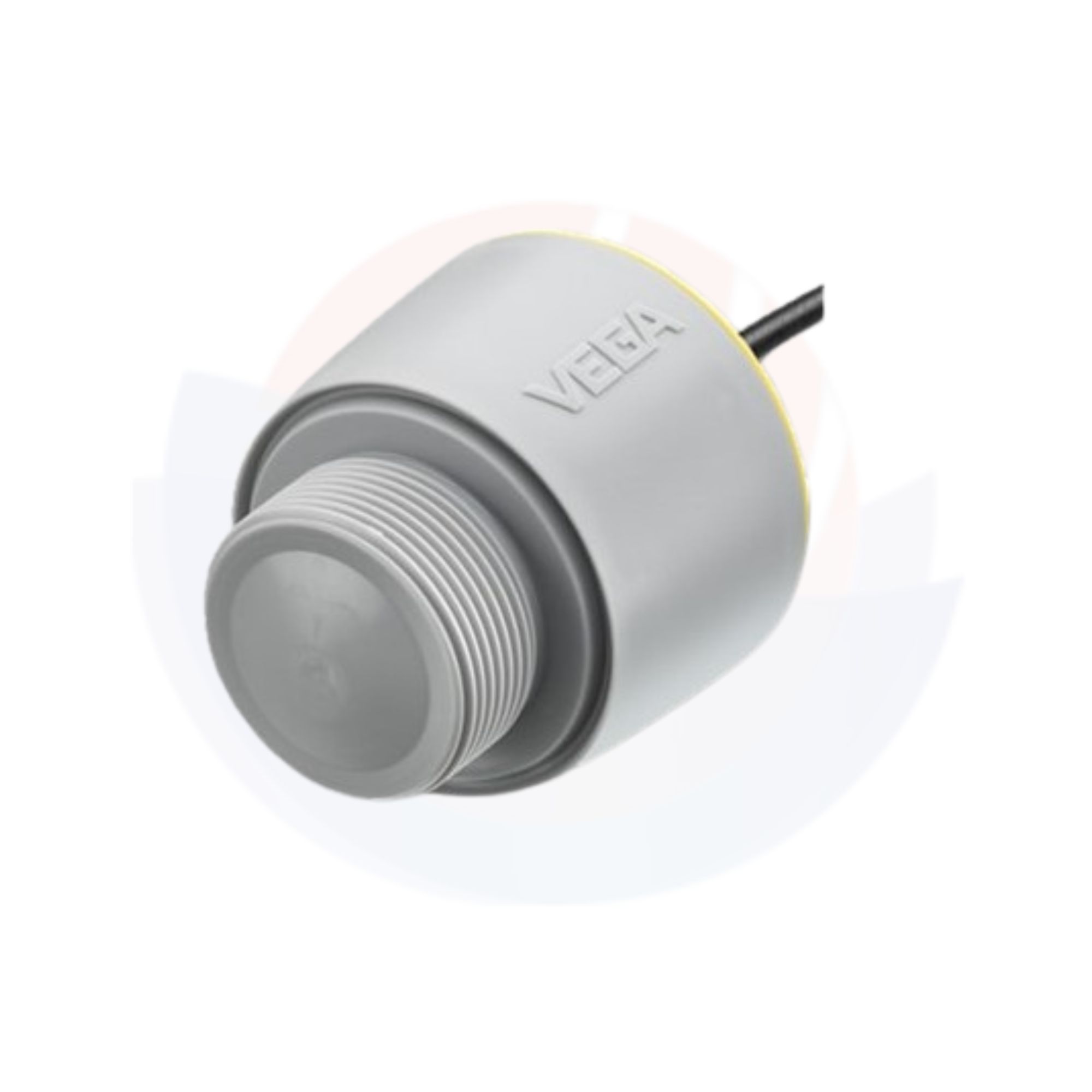

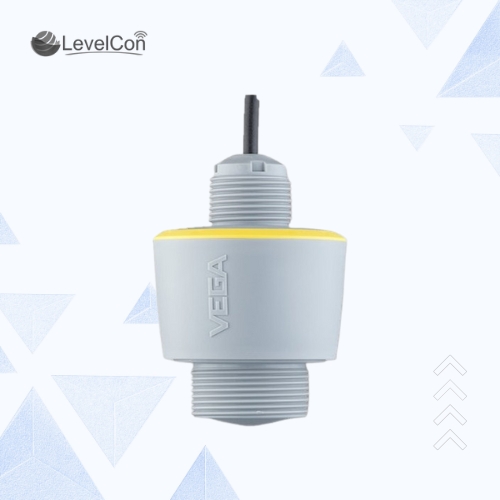

The VEGA VEGAPULS C 21 wired radar sensor is ideal for non-contact level measurement with high accuracy re-quirements in all standard applications where a high degree of protection is required. It is particularly suitable for level measurement in water treatment, pumping stations, and rain overflow basins, for flow measurement in open channels, for level monitoring, and for many other industrial areas. The sensor is suitable both for measuring liq-uids and for use on small bulk solids silos or bulk solids containers.
Product Information
| Product Dimensions: 94mm H, 46mm Diameter | Operating Temp: -40 to 80°C (-40 to 176°F) | |
| Model Number: | |
| Wireless Communication: | Wireless comms through LevelCon WP01 SN |
| Sensing Technology: | W-band , 8 degree angle |
| Operating Voltage: | 12 … 35 V DC |
| Operating Signal: | W-band (80GHz technology) |
| Output Signal: | 4 to 20mA/HART, Modbus, or SDI-12 |
| Enclosure Material: | PVDV/KFM |
| Range: | Up to 20 meters |
| Battery Size: | NA |
| Tank Connection: | Thread G1½, 1½ NPT, R1½ |
| CPU: | NA |
| Country of Origin | More than 50% assembled in the USA |
Warranty & Support
All our products come with a 1-year limited warranty and lifetime technical support. For any queries or issues, contact our support team.
