Propane Dials: Jr, Sr, Taylor, Magnetel
Propane Dials: Jr, Sr, Taylor, Magnetel
Categories: Wired Sensors
Typical Industries:
Brochure
- Propane
- Fuels and Lubes
- Water and wastewater
- Oil and Gas
- Agriculture
- Chemical Industry
- Fluid level Monitoring
- Paired with Rochester Float Gauge
Brochure
Product Descriptions:

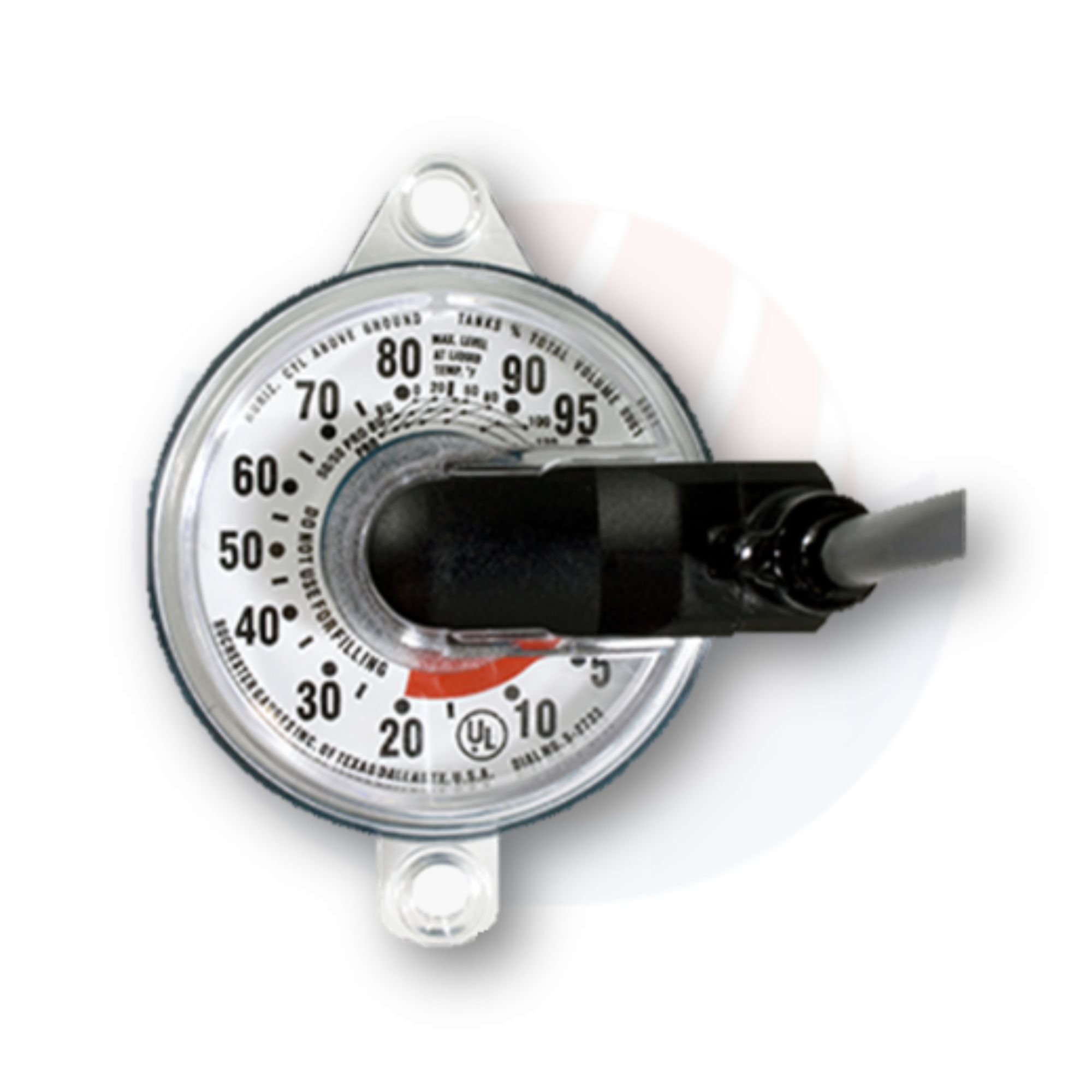

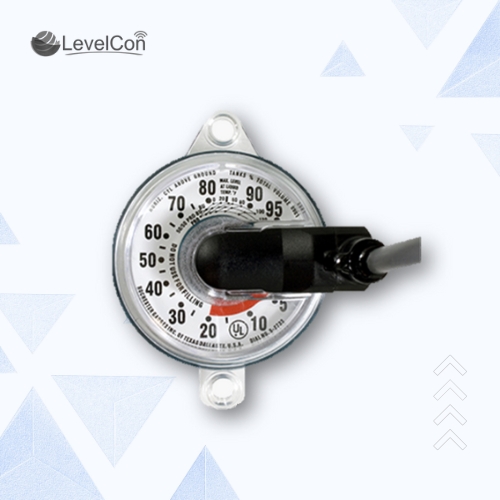

The Rochester Remote Ready Dial, R3D® – LP, is a magnetically-driven, Hall Effect compatible dial. Dials are uti-lized on stationary applications where direct reading plus an electrical signal to a remote fuel level monitor may be required. Models are available to fit all Rochester Junior, Senior and Snap-Onliquid-level gauges.
Rochester’s Hall Effect Module is designed to snap-fit into the recess in the Remote Ready Dial lens. Once in-stalled, the module can provide ratiometric voltage output proportional to the liquid volume inside the tank.
Product Information
The Rochester Remote Ready Dial, R3D® – LP, is a magnetically-driven, Hall Effect compatible dial. Dials are uti-lized on stationary applications where direct reading plus an electrical signal to a remote fuel level monitor may be required. Models are available to fit all Rochester Junior, Senior and Snap-Onliquid-level gauges.
Rochester’s Hall Effect Module is designed to snap-fit into the recess in the Remote Ready Dial lens. Once in-stalled, the module can provide ratiometric voltage output proportional to the liquid volume inside the tank.
Product Information
| Product Dimensions: 47mm hole mount to hole mount | Operating Temp: -40° to 80°C (-40°F to 176°F). | |
| Model Number: | |
| Wireless Communication: | Wireless comms through LevelCon WP01 SN |
| Sensing Technology: | Magnet Drive |
| Operating Voltage: | 3.5 to 6.0 vdc/ratiometric. |
| Operating Signal: | Ratiometric 5-80% of input voltage @ 5-80% volume. |
| Output Signal: | 0-3.3v, 0-5v |
| Enclosure Material: | PVDV Plastic |
| Range: | Jr, Sr, Taylor, 4-8” Magnetel |
| Battery Size: | NA |
| Tank Connection: | Phillps screw mount to Rochester float gauge head |
| CPU: | NA |
| Country of Origin | NA |
Warranty & Support
All our products come with a 1-year limited warranty and lifetime technical support. For any queries or issues, contact our support team.
