LT1410 Non Hazardous Hydrostatic Sensor
LT1410 Non Hazardous Hydrostatic Sensor
Categories: Wired Sensors
Typical Industries:
Brochure
- Oil and Gas
- Fuels and Lubes
- Water and wastewater
- Agriculture
- Liquid Feed
- Liquid Level Monitoring
- Fuels– Diesels, DEF
- Water
- Lubes
- Slurry
Brochure
Product Descriptions:

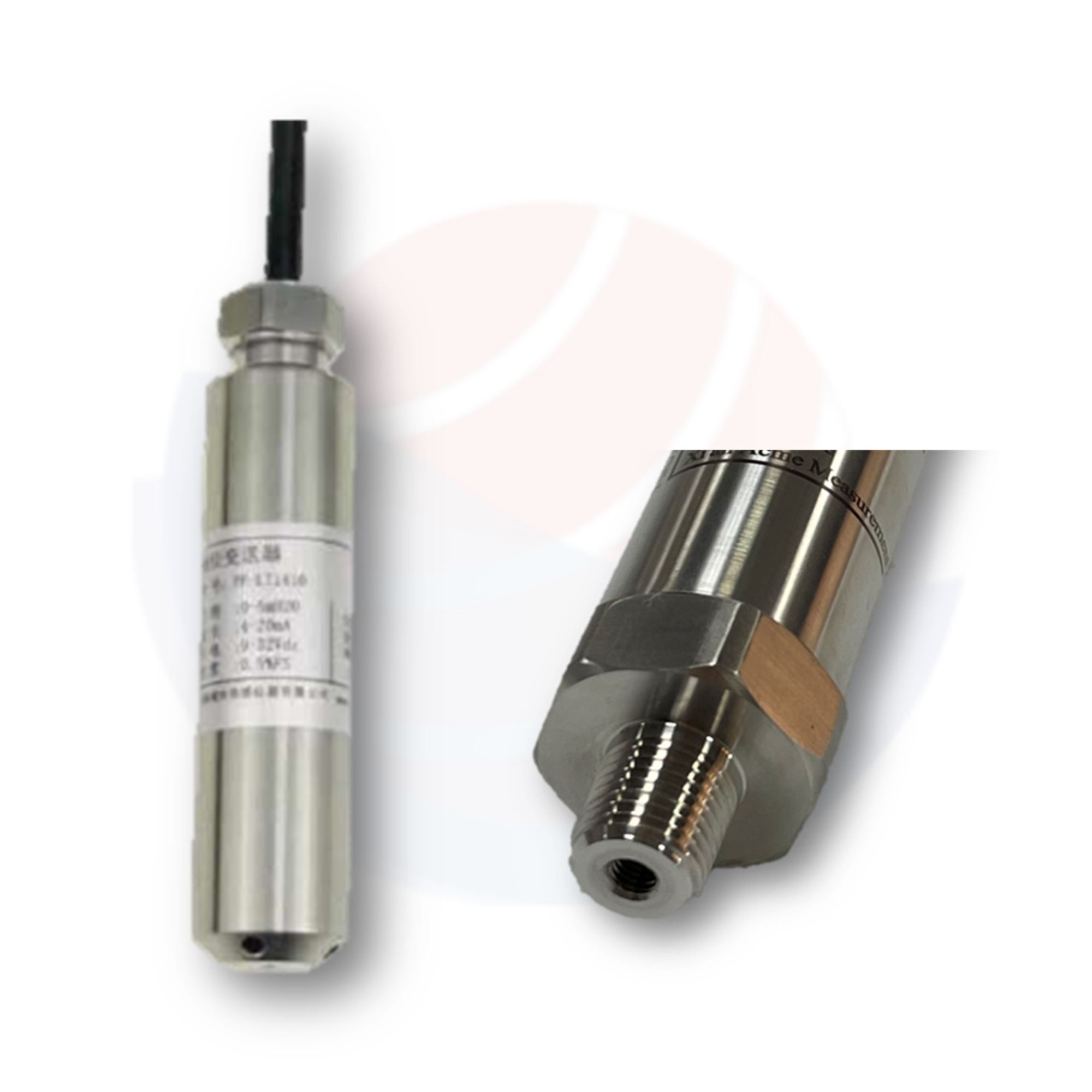

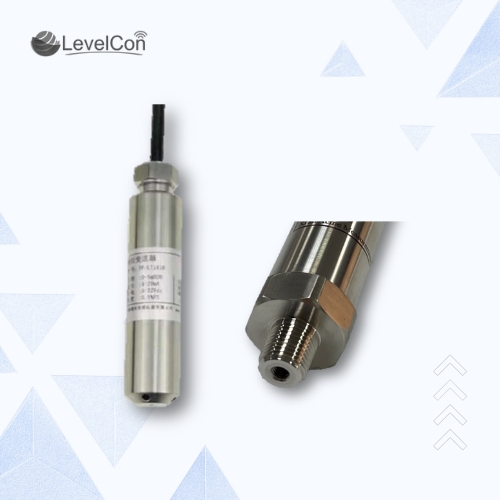

The LT1410 submersible pressure sensor is a cost-effective, highly dependable hydrostatic level measurement solu-tion. Designed for both submersible and external installations, it offers measurement ranges from 4 to over 60 feet. Built with a rugged 316 stainless steel body and a durable polyurethane jacket, the LT1410 provides excellent resistance to a wide range of non-aggressive liquids. This accurate, low-cost sensor performs reliably in some of the harshest environments, delivering outstanding value and deployment flexibility.
Product Information
| Product Dimensions: 10.3X2.2X2.2 cm | Operating Temp: -10 to 70C | |
| Model Number: | |
| Wireless Communication: | Wireless Mesh Communication: When paired with WP01SN |
| Sensing Technology: | Gauge Pressure, diaphragm |
| Operating Voltage: | 0-5V |
| Operating Signal: | .5v->4.5v. 4-20mA, RS485 |
| Enclosure Material: |
|
| Range: | .25 –> 2 bar |
| Battery Size: | NA |
| Tank Connection: | 1/4” MNPT external connection, 2” Schedule 80 PVC tank bushing |
| CPU: | NA |
| Country of Origin | More than 50% assembled in the USA |
Warranty & Support
All our products come with a 1-year limited warranty and lifetime technical support. For any queries or issues, contact our support team.
