F200– Remote Cellular Monitor

F200– Remote Cellular Monitor

Categories:

Typical Industries:
  • Water and waste water monitoring
  • Bulk Fuels and lubes
  • Oil and Gas
  • Agriculture
  • Chemical Industry
Typical monitoring usage:
  • Fluid tank levels
  • Gas intensity and concentration
  • Temperature and Humidity
  • Pressure and vibration
  • pH, dissolved oxygen, conductivity, etc.
Download
ManualBrochure

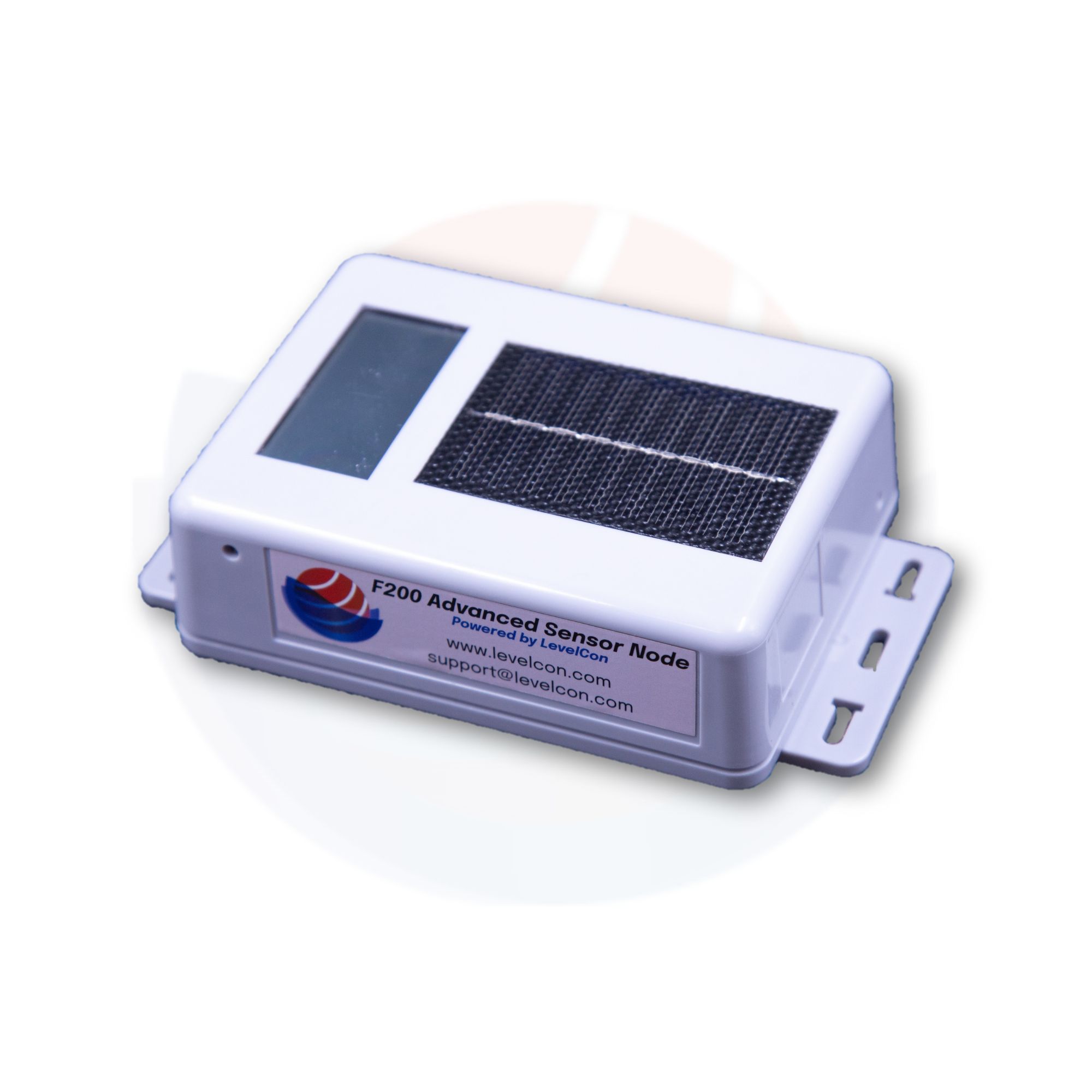

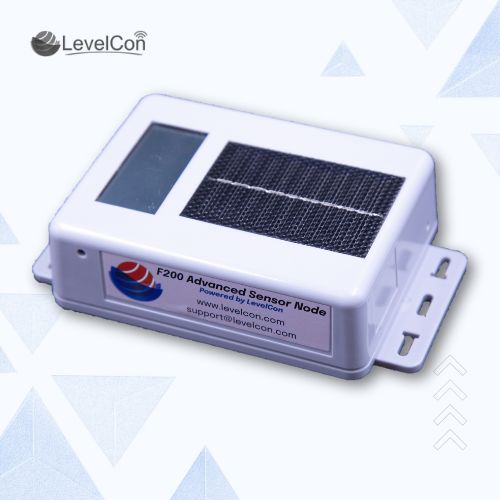

Product Descriptions: The F200 Advanced Sensor Node delivers powerful, reliable remote monitoring in any environment. C1D1-certified and globally deployable, it combines a multi-carrier SIM, large solar panel, and AA battery backup for years of worry-free operation. With an always-on backlit LCD, flexible installation, and compatibility with wired or wireless sensors, the F200 makes monitoring smarter, easier, and more versatile. F200: Powerful, flexible, unstoppable. Product Information
Product Dimensions: 120mm H, 89mm W, 36mm D | Operating Temp: -40C->65C, Storage -50C->80C
Model Number
Wireless Communication:
  • LTE Communication: CatM1-LTE, 4G
  • Wireless Network: Wireless comms to sensor nodes
  • Multi-Carrier Sim: Verizon, At&t, T-Mobile & Sprint, Global cellular options
  • Secure Protocol: AES 128 bit encryption
  • API Supported: JSON API, Multiple API configurations accepted
Sensor Compatibility:
  • Wireless Sensors: Pair with LevelCon Wireless sensor technology
  • Submersible Hydrostatic pressure sensors
  • Non-Contact: Radar and Ultrasonic sensors
  • Propane sensors and Dials
  • Other: Modbus read and control, Flow meters, Gas Meters, VFD, etc.

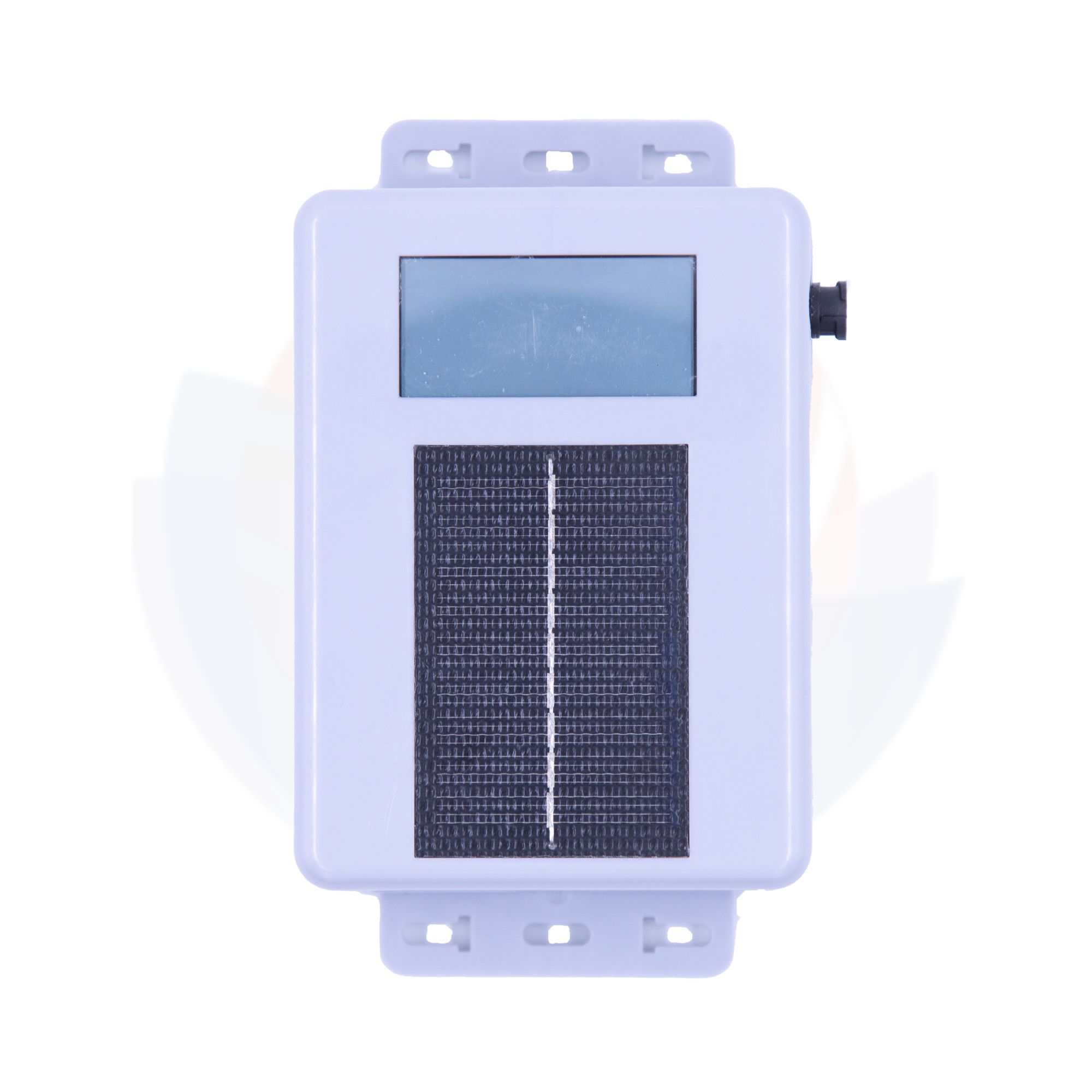

Solar Power: No Power? No Problem! LevelCon’s innovative solar harvesting solution features a high-efficiency micro-solar panel integrated directly into the product enclosure. It operates using energy stored in a long-life super-capacitor to run the system. Additional off the shelf 4xAA batteries are populated for power backup. Key Benefits:
  • Maintenance free solar charging system with up to 10 years of operation
  • Optional 12v external power supply
  • Cost effective, sustainable, and build for long term reliability
Installation Made Easy:

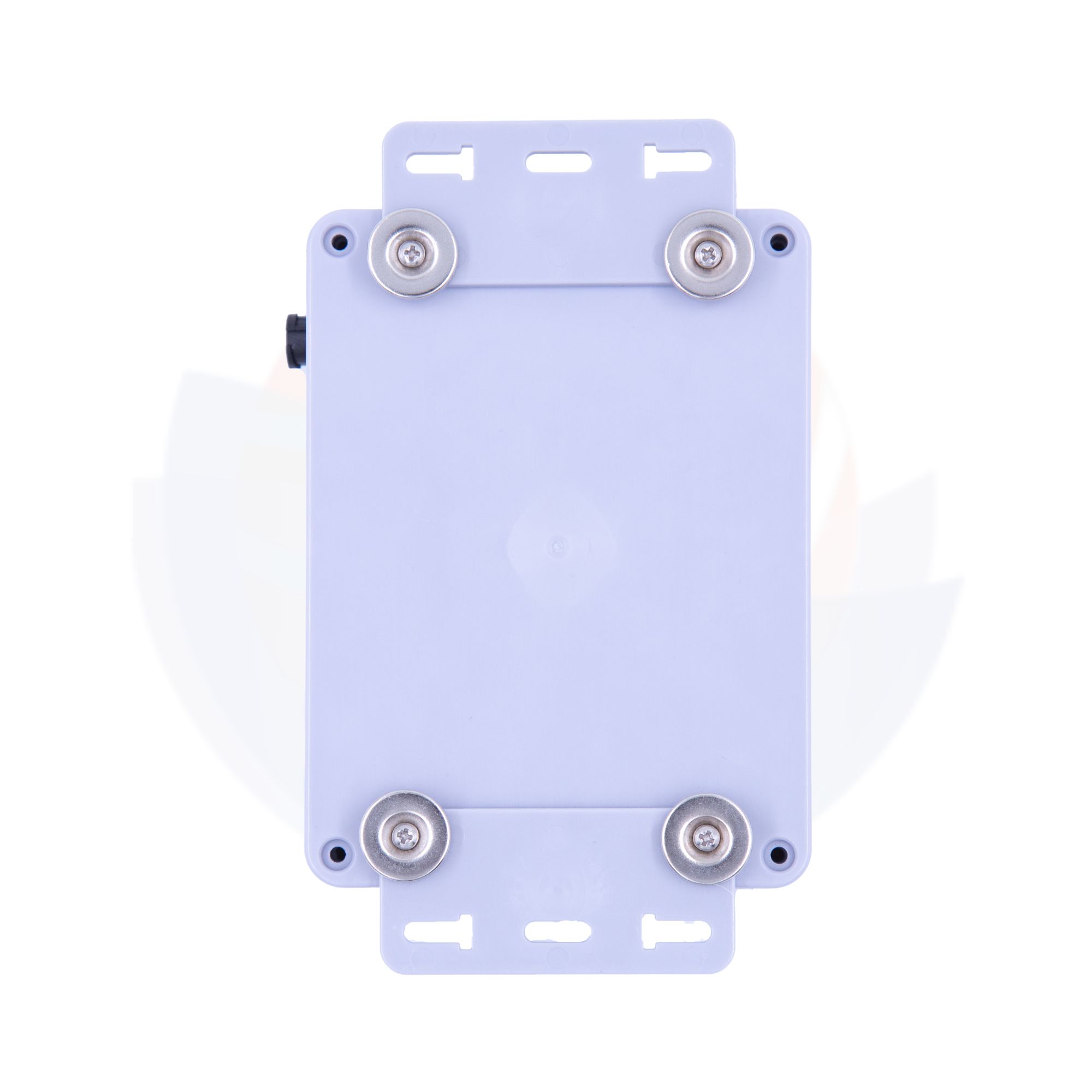

  • Magnetic installation to any metal tank
  • Optional fixed bracket for zip tie or screw mount
  • Local LCD: Large, Always on, backlit LCD for local levels
  • CID1 certification
  • Lightweight, sleek and rugged design: for both mobile and stationary asset monitoring
Country of Origin More than 50% assembled in the USA

Warranty & Support

All our products come with a 1-year limited warranty and lifetime technical support. For any queries or issues, contact our support team.
