APT350– Chemical Hydrostatic Sensor
APT350– Chemical Hydrostatic Sensor
Categories: Wired Sensors
Typical Industries:
Brochure
- Oil and Gas
- Fuels and Lubes
- Water and wastewater
- Agriculture
- Chemical Industry
- Liquid Level Monitoring
- Fuels– Gasoline, Methanol, DEF
- Many harsh chemicals
Brochure
Product Descriptions:

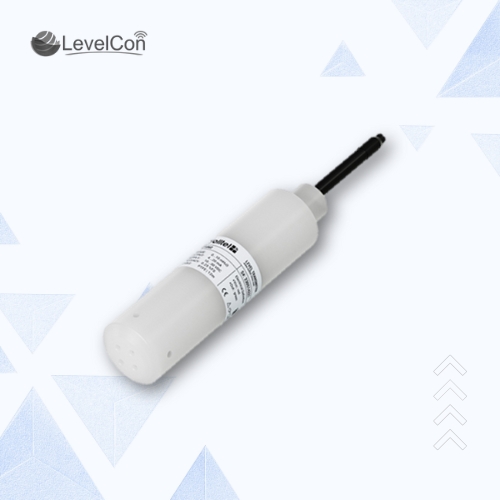

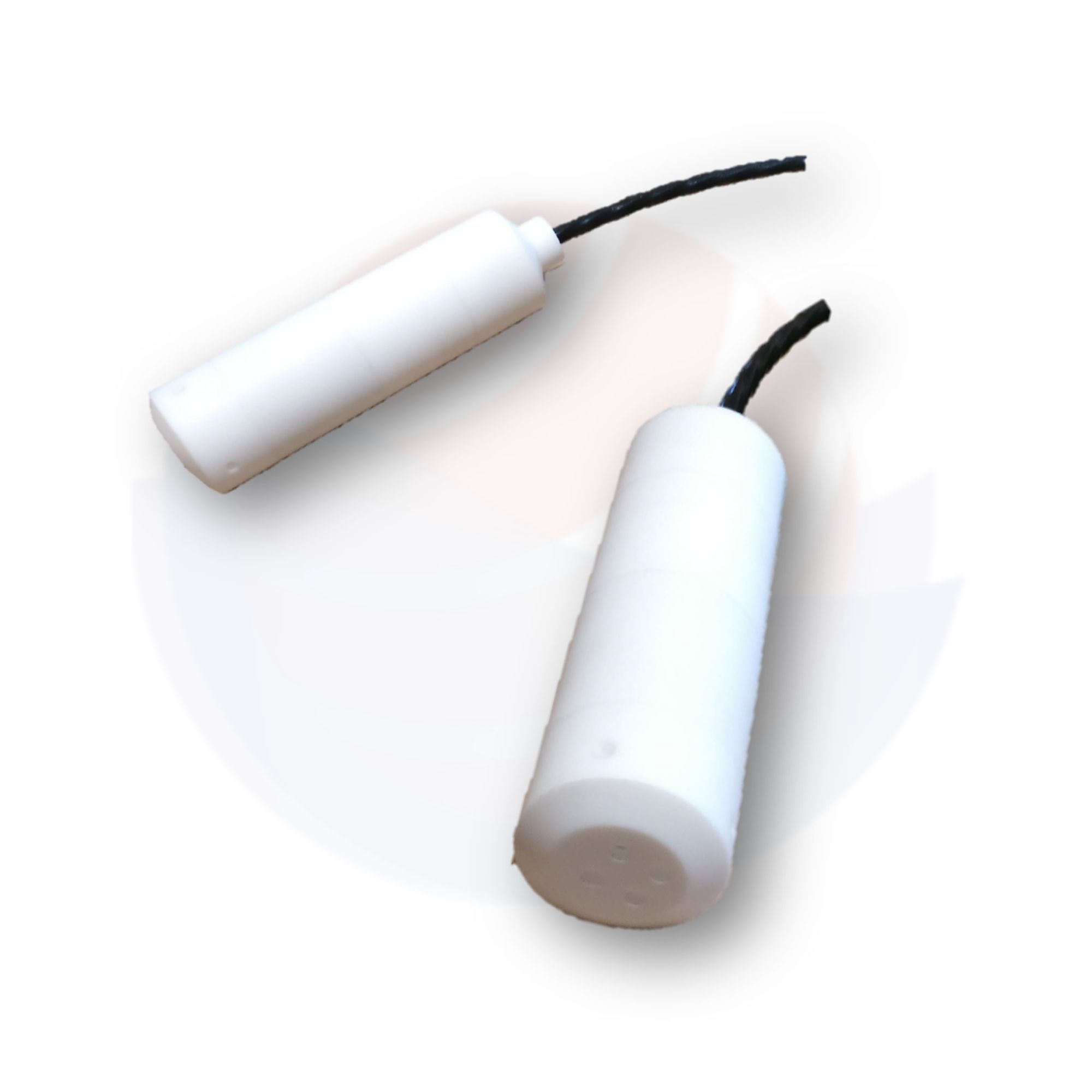

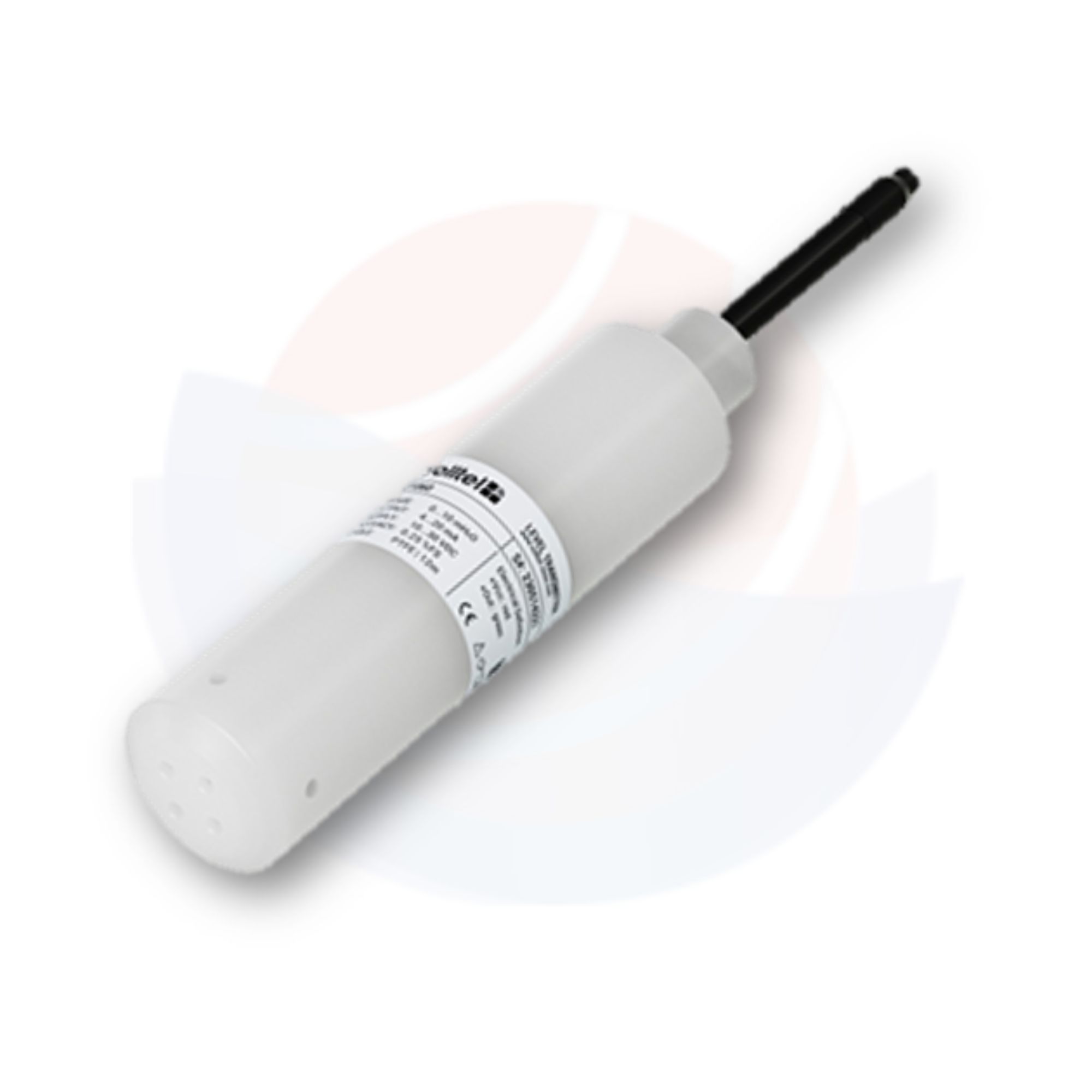

The APT350 submersible pressure sensor highly dependable hydrostatic level measurement solution. Designed for both submersible applications in some of the harshest chemicals, it offers measurement ranges from 4 to over 60 feet. Built with a chemical resistant full PTFE body, jacket and ceramic diaphragm, the APT350 provides excellent resistance to a wide range of aggressive liquids. This accurate, lower-cost sensor performs reliably in some of the harshest environments, delivering outstanding value and deployment flexibility.
Product Information
The APT350 submersible pressure sensor highly dependable hydrostatic level measurement solution. Designed for both submersible applications in some of the harshest chemicals, it offers measurement ranges from 4 to over 60 feet. Built with a chemical resistant full PTFE body, jacket and ceramic diaphragm, the APT350 provides excellent resistance to a wide range of aggressive liquids. This accurate, lower-cost sensor performs reliably in some of the harshest environments, delivering outstanding value and deployment flexibility.
Product Information
| Product Dimensions: 10.3X2.2X2.2 cm | Operating Temp: -0 to 50C | |
| Model Number: | |
| Wireless Communication: | Wireless Mesh Communication: When paired with WP01SN |
| Sensing Technology: | Gauge Pressure, diaphragm |
| Operating Voltage: | 0-5V |
| Operating Signal: | .5v->4.5v. 4-20mA, RS485 |
| Enclosure Material: | PTFE Body, Ceramic 96%Al2O3 Diaphragm with PTFE Jacket |
| Range: | .25 –> 2 bar |
| Battery Size: | NA |
| Tank Connection: | 2” Schedule 80 PVC tank bushing |
| CPU: | NA |
| Country of Origin | More than 50% assembled in the USA |
Warranty & Support
All our products come with a 1-year limited warranty and lifetime technical support. For any queries or issues, contact our support team.
